ترموستات و هیگروستات ریتال

مشخصات فنی Thermostat

ترموستات و هیگروستات ریتال

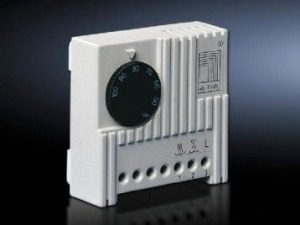

Enclosure internal thermostat

Particularly suitable for controlling fans, heaters and heat exchangers, this thermostat can also be used as a signal generator for monitoring the enclosure internal temperature.

Benefits:

  • Time-saving connection technique using a termi- nal strip with a screw connection from the outs-
  • Flexible mounting on a vertical or horizontal 35 mm support rail to EN 50 022, and snap fastening in the enclosure section or on the mounting plate using the supplied adaptor

Technical specifications:

  • Bi-metal controller as a temperature-sensitive element with thermal feedback
  • Contact population: Single-pole change-over contact as a quick-break contact
  • Permissible contact load: Category 5 – ۳ (heating) AC 10 (4) A (inductive load at cos φ

       = ۰.۶)/category 5- 4 (cooling): AC 5 (4) A (inductive load at cos φ = ۰.۶)/DC = max. 30 W

  • Switching difference: 1 K ± ۰.۸ K

Colour:

– RAL 7035

Accessories:

  • Bottom-mounted adaptor, see page 548
  • Mounting plate, see page 998

W x H x D mm

Rated operating voltage V, ~Setting rangePacks of

Model No.

۷۱ x 71 x 33.5

۲۴ – ۲۳۰, ۱~

۲۴ – ۶۰ (DC)

+۵ °C…+60 °C۱ pc(s).

۳۱۱۰.۰۰۰

مشخصات فنی Hygrostat

ترموستات و هیگروستات ریتال

Activates the heater and/or fan when a preset rela- tive humidity in the enclosure is exceeded. This reduces the relative humidity and prevents conden- sation on assemblies and electronic components.

Benefits:

  • Time-saving connection technique using a terminal strip with a screw connection from the
  • Flexible mounting on a vertical or horizontal 35 mm support rail to EN 50 022, and snap fastening in the enclosure section or on the mounting plate using the supplied adaptor

Technical specifications:

  • Contact population: Single-pole change-over contact as a quick-break contact
  • Permissible contact load: AC ~ 5 (0.2) A (inductive load at cos φ = ۶)/DC = max. 20 W
  • Setting range: 50 – ۱۰۰% relative humidity
  • Switching difference: 4%

Colour:

– RAL 7035

Accessories:

  • Bottom-mounted adaptor, see page 548
  • Mounting plate, see page 998

W x H x D mm

Rated operating voltage V, ~Packs of

Model No.

۷۱ x 71 x 33.5

۲۴ – ۲۵۰, ۱~

۲۴ – ۷۵ (DC)

۱ pc(s).

۳۱۱۸.۰۰۰
